Frame Bags for Small Frames, XS Bikes and Step-Through Frames
Almost every piece of frame bag advice quietly assumes an adult medium or large frame with a long, straight top tube. If you ride an XS road bike, a small hardtail or a city bike with a low step-through, that advice stops applying and nobody tells you where. Here is what changes on those frames: how much usable triangle you have, where a bag can strap, and when the honest answer is that it will not fit.
Why a small frame loses more triangle than the size chart suggests
Frame sizes are not photocopies of each other. Going from a medium down to an extra-small, three things happen at once: the top tube gets shorter to pull the reach in, the seat tube gets shorter so the saddle can drop, and the top tube is angled down more steeply at the back so a shorter rider can still stand over the bike. Each change sounds minor on its own. Stacked, they take a real bite out of the open space between the tubes.
On a large gravel frame a compact bag fills maybe a third of a roomy triangle. On an extra-small frame the same bag fills most of the usable space, and what limits you changes: it is no longer the bag against the tubes, it is the bag against a bottle, a knee or a cable.

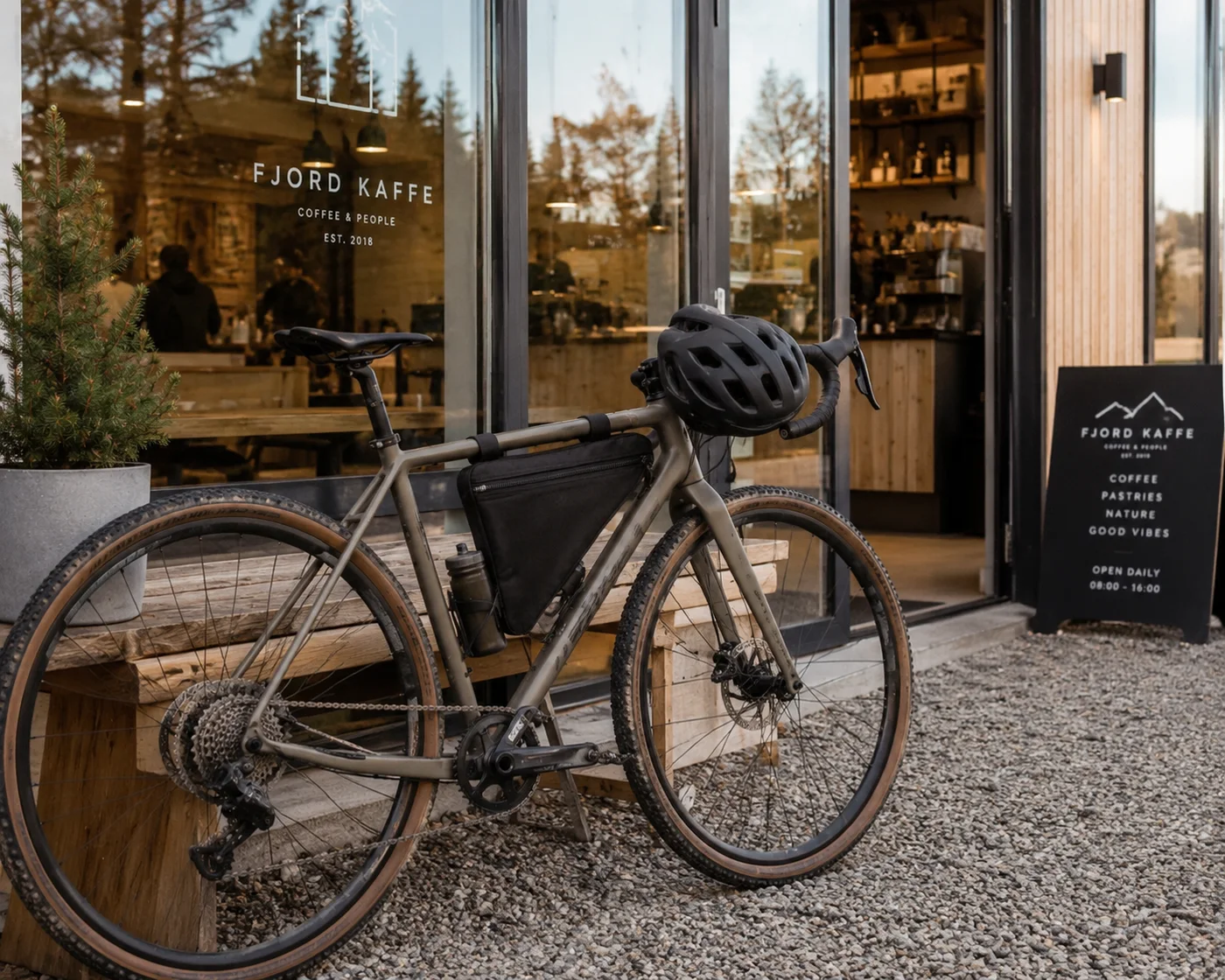

The part of the triangle that survives on every frame is the front corner, near the head tube. That is exactly where a compact triangle bag is designed to live, which is why it fits bikes a full-triangle bag cannot. Our frame bag sizing guide covers the tape measure method, so this article stays on the geometry.
What counts as a small frame once you are fitting a bag
An XS road frame, a 15 inch hardtail and a small hybrid are all called small and have little in common once you hold a bag up to them. The hardtail has a steeply sloping top tube and a dropper cable. The road frame has two cage mounts fighting for the same wall. The hybrid is usually the easiest of the three. The useful question is not what size you ride, it is how much clear, uninterrupted tube you have.

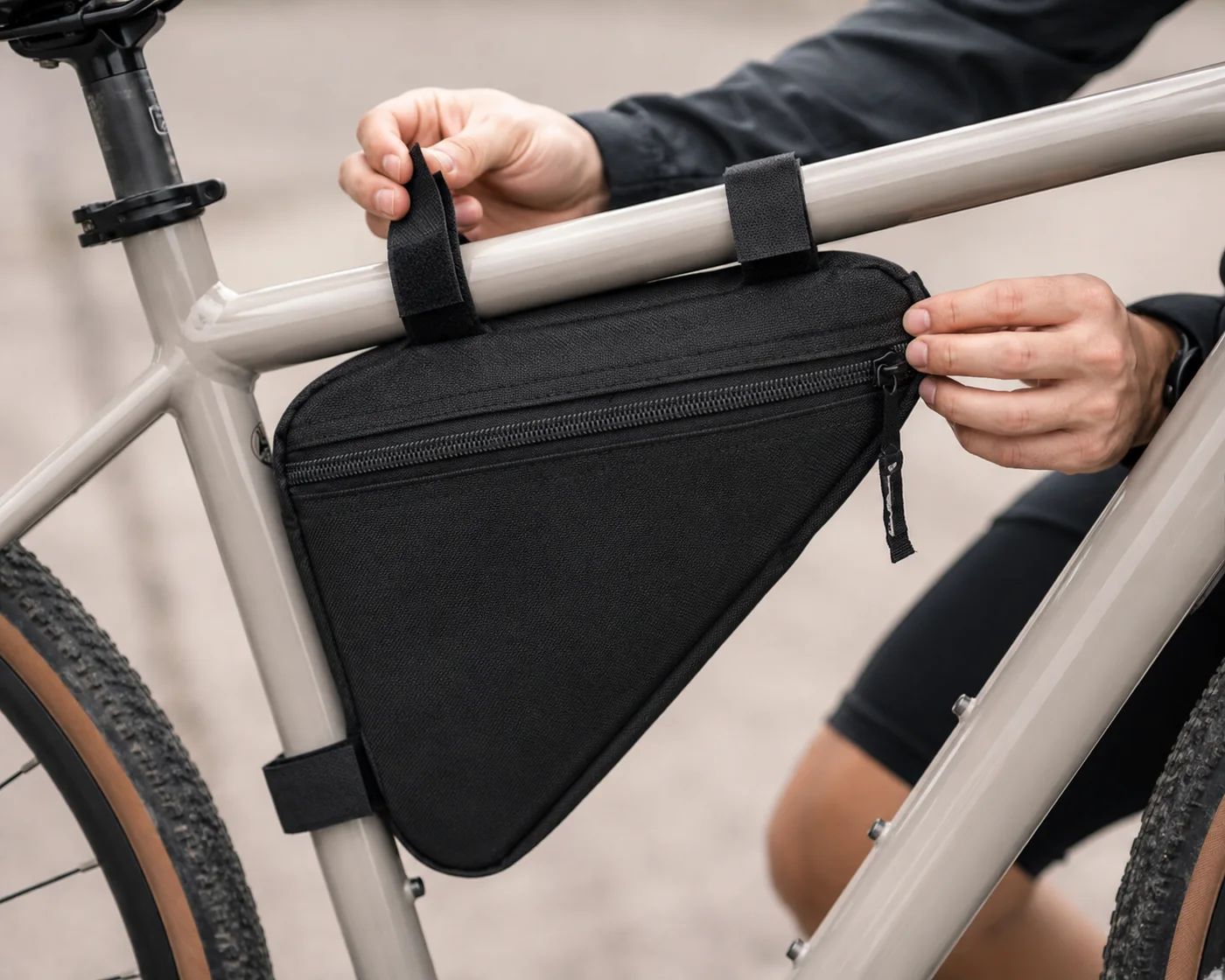

Look at where the straps have to land. The Ridgeline Trail holds on with three velcro straps, two around the top tube and one around the down tube, and each needs a stretch of bare tube to close on. On a large frame you can slide the bag forward or back to dodge a cable port. On a small frame the seat clamp, the cable stops and the bottle bosses take a much larger share of that same tube, so there may be only one position where all three straps land clean. That is also why a compact bag fits here where a shaped full-triangle bag cannot: it asks only for a short clear run of two tubes, not the outline of your whole triangle.
Step-through and open frames: there is no closed triangle
Open frames are not one design, and the difference decides everything.
| Open frame style | What the frame looks like | Frame bag outlook |
|---|---|---|
| Mixte / trapeze | Two thin tubes running from the head tube back and down to the rear | Workable. A compact bag can strap between the upper tube and the down tube |
| Low-step | A top tube that is still roughly straight but sits very low | Workable but shallow. Expect to lose bottle access |
| True step-through / wave | One curved tube sweeping from the head tube down to the bottom bracket area | No closed space to fill. Look at a top tube bag instead |
On a mixte or a low-step, the down tube is the asset: long, usually straight and mostly clear, so the lower strap has plenty to grab. The bag rides lower and further forward than it would on a diamond frame, closer to a down tube bag than a triangle bag. That is fine, since the load still sits low and between the wheels.
On a true wave frame there is no honest workaround. A bag needs two surfaces roughly facing each other to sit between, and one curved tube gives you one. Strap a small bag on top of that curve and it lands in the way of the leg swing the frame exists to allow. Better to stop using the triangle: the Ridgeline Pilot mounts on the flat run behind the stem, which most open frames still have.
The three clearances that decide fit on a small bike
Knees. The pedal stroke arc does not shrink with the frame, so on a small bike your knees pass closer to the back edge of the bag. The fix is position, not a different bag: pull it high under the top tube and slide it forward until the rear corner sits ahead of your knee path. Our install guide covers the tightening order.
Bottles. On a shallow triangle the down-tube cage sits close to the top tube, so a full bottle and a bag compete for the same few inches. Fit the cage and a full bottle first, then look at what is left above it. That gap is the honest limit on how deep a bag can sit, and our half frame bag guide lays out the trade.
The front wheel. Small frames run shorter front centres, so the tyre sits closer to the cranks and swings back toward the down tube at full steering lock. A compact bag sits high and back from the head tube, so this rarely stops you, but check it once with the bars turned all the way before your first ride.
E-bikes, folders and kids' bikes: the geometries that break the rules
E-bikes are the common case now, and they are also where most open frames live. A down tube battery either sits inside the tube, fattening it beyond what a strap comfortably wraps, or clips onto the outside and blocks the lower strap outright. One verified buyer of our phone bag was blunt about how that goes: "Didn't fit my e-bike but works perfectly on my regular bike." We would rather publish that than pretend every bike is covered, and it matters more each year.
Americans ride a bicycle each year, across every frame size and style
— Outdoor Industry Association, 2023
US bike sales hit record highs during the 2020 cycling boom
— NPD Group, 2021
E-bikes are among the fastest-growing US cycling categories, outselling electric cars in unit sales
— LEVA, 2023
Folding bikes fail for a different reason: most hinge in the middle of the main tube, so anything strapped across that area blocks the fold or gets crushed when you close the bike. Kids' bikes and 20 to 24 inch wheels are simply short, with rarely enough clear tube for three straps. On all three, a top tube or saddle bag is the more honest recommendation.
What to do when the triangle is genuinely too short
The first move is the one most small-frame riders make. Push the bag as high and as far forward under the top tube as the straps allow, run the lower strap above the cage bolts, and accept that one cage becomes storage rather than hydration. On a short ride that costs you nothing. On a long summer ride you carry a bottle in a jersey pocket instead.
The second move is to stop fighting the triangle. A top tube bag sits on the flat run of frame behind the stem, so it needs a few inches of tube rather than an enclosed space. The Ridgeline Pilot is $24.99, uses three velcro straps and has a hard waterproof shell with a touchscreen window that fits phones up to 7 inches. For a commuter on a step-through, that one bag often solves the whole problem.
The third move is to split the load by where it fits: phone and cards up top, tube and multitool in a saddle bag behind you. Our frame bag vs saddle bag vs handlebar bag comparison covers what each position does to the handling.
What we can promise about small-frame fit, and what we cannot
We do not publish a frame-size compatibility chart, because we have not verified one. A table claiming the bag fits every XS road frame and every 15 inch hardtail would look reassuring and would be a guess. What we can tell you is how the Trail behaves on the bikes we mount it on: on medium and large frames it rides high and leaves cage room below, and on small frames it fills more of the triangle, so you may keep only one cage or none. That is set out on our half frame bag page, and the method behind it on how we test.
What the bag needs from your bike takes a minute to check: a short clear run of top tube for two straps, a clear run of down tube for the third, and enough vertical gap in the front corner to sit without touching a bottle or your knee. If your frame has those three, the size on the sticker matters little.
Fitted right, the bag disappears into the bike whatever the size. A verified buyer put it the way most riders do: "Excellent quality! Sits snug in the frame and doesn't rattle on rough ground."
The compact Ridgeline Trail is $29.99 (was $39.99), ships free, arrives in 8 to 10 business days and carries a 30-day money-back guarantee. On an unusual frame the guarantee is the useful part: fit it to your own bike, and if the triangle does not play along, send it back.
Free worldwide shipping · arrives in 8 to 10 business days · 30-day money-back guarantee · secure Stripe checkout. Want the phone bag too? The Complete Kit pairs both for $44.99.
Small-frame frame bag FAQ
Will a frame bag fit an XS or extra-small frame?
Usually yes, but it sits differently. A compact triangle bag needs only a short clear run of top tube and down tube for its three velcro straps. What changes is how much of the triangle it fills: on an XS frame it takes most of the usable space and often overlaps one bottle cage.
Can you use a frame bag on a step-through or open frame bike?
It depends which open frame you have. A mixte or trapeze frame keeps a sloping upper tube, so a compact bag can strap between that tube and the down tube. A true step-through with one curved tube has no closed triangle, so a top tube bag is the better answer.
Will I still be able to use a water bottle on a small frame?
Often one bottle rather than two. On small frames the down-tube cage sits high in a shallow triangle, so a bag under the top tube overlaps the space a full bottle needs. Fit the cage and a full bottle first, then check the gap left underneath. That gap is the real limit.
Does a frame bag fit a folding bike?
Rarely, and not because of size. Most folders hinge in the middle of the main tube, so a bag strapped across that area blocks the fold or gets crushed by it. Small-wheel frames also leave very little clear tube. A top tube or saddle solution suits a folder better.
What happens if the bag does not fit my frame?
You send it back. Every Ridgeline order ships free, arrives in 8 to 10 business days and is covered by a 30-day money-back guarantee through secure Stripe checkout. Fit is the one thing we cannot promise sight unseen on an unusual frame.
